Different Types of Conveyor Chains: A Technical Engineering Guide

Selecting the correct conveyor chain is a critical decision that influences the throughput, energy efficiency, and lifecycle of a material handling system. Unlike drive chains, which are optimized for power transmission at high speeds, conveyor chains are engineered for load-bearing stability, friction management, and the integration of specialized attachments.

Understanding the mechanical nuances between different chain architectures allows engineers and plant managers to minimize downtime and prevent premature fatigue failure in demanding environments.

The Engineering Logic Behind Conveyor Chain Design

At its core, a conveyor chain is a series of journal bearings held together by constraining link plates. However, the specific demands of moving materials—whether they are automotive chassis, food products, or bulk minerals—require variations in pitch, roller diameter, and pin configuration.

The primary distinction in conveyor chain selection often begins with the “Pitch.” While standard roller chains (Short Pitch) follow ANSI or ISO standards for high-speed synchronization, many conveyor systems utilize Double Pitch chains. By doubling the length of the link plates while maintaining the same pin and bush dimensions, the chain becomes lighter and more cost-effective for long-distance transport where high speed is not a requirement.

Roller Conveyor Chains: The Industrial Workhorse

Roller chains are the most prevalent type used in manufacturing. They feature a cylindrical roller that rotates around a bushing, significantly reducing friction as the chain engages the sprocket teeth.

• Short Pitch Roller Chains: Primarily used in compact conveyor systems or where precise positioning is required. These are common in high-speed packaging lines.
• Double Pitch Roller Chains: Designed specifically for conveyor applications. These often feature “Large Rollers” (where the roller diameter is greater than the link plate height). The large roller allows the chain to roll along a track, reducing the coefficient of friction and the power required to drive the system.
• Stainless Steel Variants: In wash-down environments or chemical processing, 304 or 316-grade stainless steel chains are mandatory to prevent oxidation and ensure compliance with food safety regulations.

Hollow Pin Chains: Maximum Customization

For engineers designing modular systems, the Hollow Pin Chain offers unparalleled flexibility. The pins are manufactured with a hole through the center, allowing for the easy insertion of cross-rods or specialized attachments without disassembling the chain.

• Application Logic: These are frequently found in drying ovens, bread provers, and elevator conveyors where stay bars must link two parallel strands of chain.
• Mechanical Advantage: Because the attachments are held by the hollow pins, the load is distributed evenly across the chain’s joints, reducing the risk of twisting or misalignment.

Attachment Chains: Tailoring the Interface

In many automated lines, the chain does not just move; it carries, pushes, or lifts. This is where Attachment Chains (often referred to as Conveyor Chains with Extended Pins or Plates) become necessary.

Standardized attachments include:

• K-Type Attachments: Bent link plates that provide a flat surface for mounting slats or buckets.
• M-Type Attachments: Straight link plates used for pushing or stabilizing products.
• Rubber U-Attachments: Specifically designed for fragile goods. The rubber top prevents scratching or marring on the surface of products like glass, polished metal, or finished consumer electronics.

Leaf Chains and Heavy-Duty Lifting

While technically a “chain,” Leaf Chains (or F-series) differ because they do not have rollers or bushings. They consist only of pins and link plates.

• High Tensile Strength: Leaf chains are designed for high-load, low-speed lifting rather than continuous horizontal conveyance. You will find these in forklifts and counterweight systems within automated storage and retrieval systems (ASRS).
• Durability: Their ability to withstand high shock loads makes them the preferred choice for vertical reciprocating conveyors (VRC).

Agricultural and Specialty Chains

Agricultural environments introduce unique stressors: abrasive dust, moisture, and inconsistent lubrication. Agricultural Chains (such as S-type or CA-type) feature more robust clearances between the pin and bushing to prevent “freezing” when debris enters the joint.

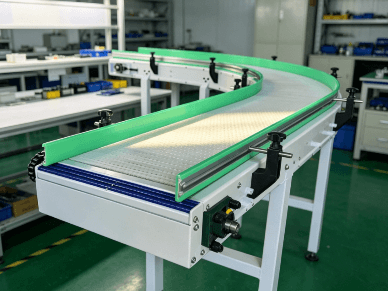

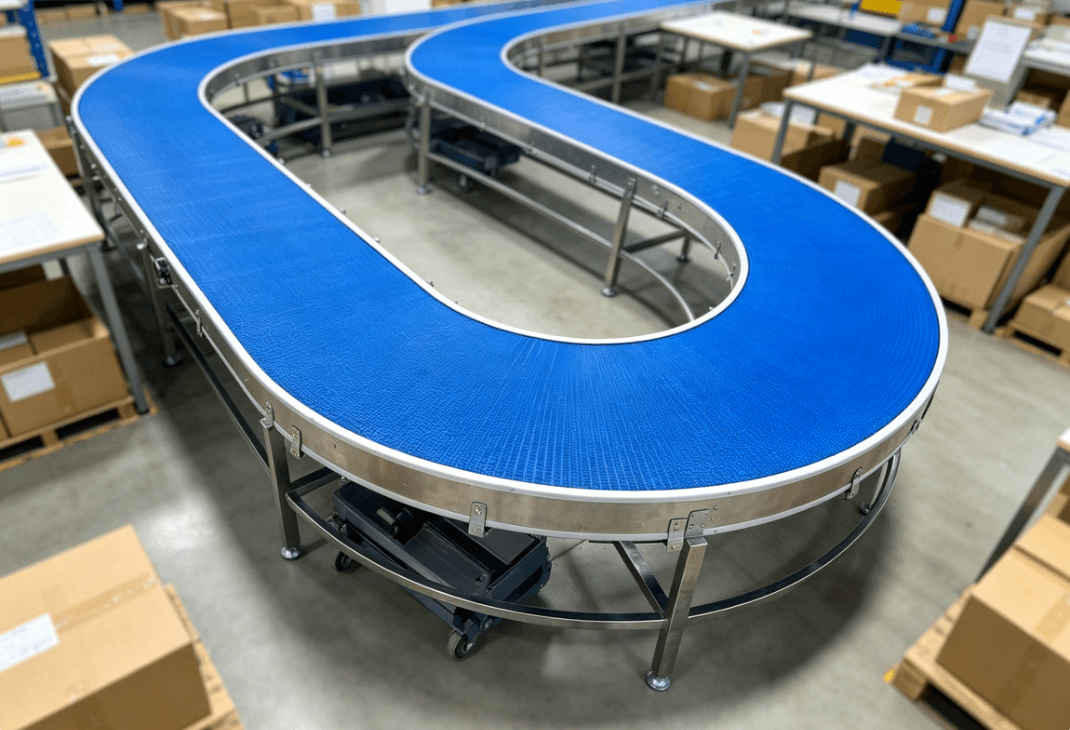

In the same category of specialty design, Side Bow Chains are engineered with extra clearance to allow for lateral flexibility, enabling the conveyor to navigate curves and multi-planar paths without the need for complex transfer points.

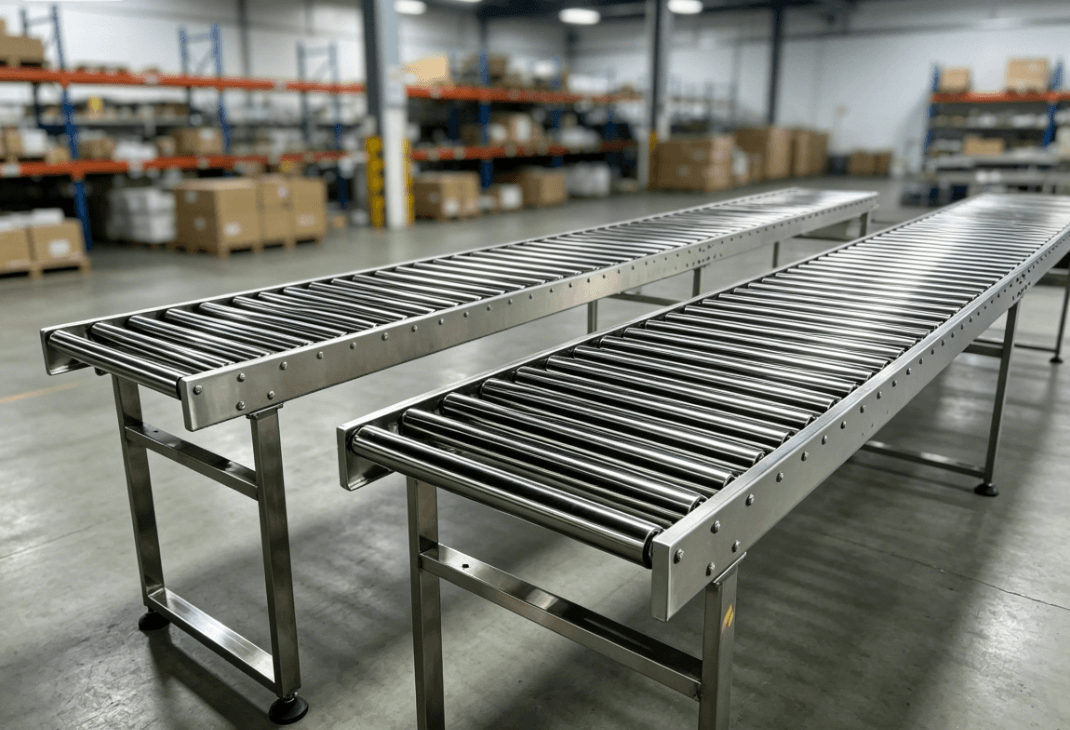

Material Selection: Carbon Steel vs. Stainless Steel

The technical performance of a conveyor chain is heavily dictated by its metallurgy.

Technical Considerations for OEM Integration

When integrating these chains into a new project, engineers must account for “Chain Stretch” or elongation. This occurs not because the metal stretches, but because the material wears down at the pin-bushing interface.

For high-precision conveyors, such as those found in Leyu’s specialized chain categories, selecting a chain with heat-treated components and shot-peened plates is essential. These manufacturing processes induce compressive residual stresses, which significantly improve the fatigue life of the chain under cyclic loading.

Summary of Selection Logic

To choose the right type of conveyor chain, follow this engineering hierarchy:

1. Define the Load: Will the chain roll (Double Pitch Large Roller) or slide (Short Pitch)?
2. Identify the Environment: Is it corrosive (Stainless Steel), abrasive (Hardened Carbon), or high-heat?
3. Determine Attachment Needs: Do you need cross-rods (Hollow Pin) or mounting surfaces (K-attachments)?
4. Analyze Geometry: Does the path include curves (Side Bow) or vertical lifts (Leaf Chain)?

FAQ

What is the difference between a conveyor chain and a transmission chain?

Transmission chains are designed to transmit power at higher speeds and smaller diameters. Conveyor chains are designed to carry loads, often featuring longer pitches, larger rollers, and attachments for material interface.

When should I use a double pitch conveyor chain instead of a standard roller chain?

Double pitch chains should be used when the conveyor is long and the speed is relatively low. They are more economical and lighter, reducing the motor torque required to move the total mass of the chain.

How does a hollow pin chain improve system design?

It allows for modularity. You can insert or remove rods and attachments at any link without using specialized tools or breaking the chain’s structural integrity.

Can stainless steel conveyor chains handle the same load as carbon steel?

Generally, no. Stainless steel (304 or 316) has a lower hardness and tensile strength compared to heat-treated carbon steel. If high loads and corrosion resistance are both required, specialized precipitation-hardened stainless steels or coated carbon steels may be necessary.

How do I prevent chain elongation in high-cycle conveyors?

Ensure the chain has been pre-loaded during manufacturing to settle the components, and utilize a consistent lubrication schedule to reduce friction at the journal bearing (pin and bush).

Reference Sources

• ISO 606: Short-pitch transmission precision roller and bush chains, attachments and associated chain sprockets.
• ASME B29.1: Precision Power Transmission Roller Chains, Attachments, and Sprockets.
• Conveyor Equipment Manufacturers Association (CEMA): Standards for belt and chain conveyor design.
• American National Standards Institute (ANSI): B29 series for industrial chain performance and dimensions.
